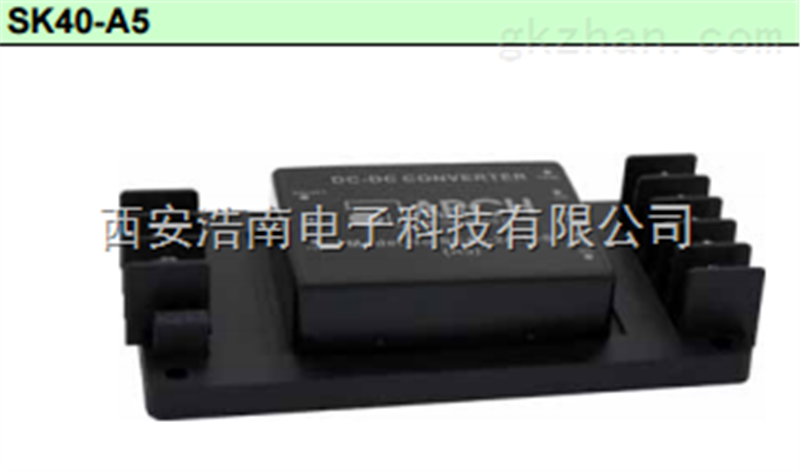

ARCH A2底座安装DC/DC电源模块SK40-48-24S-A2 SK40-48-12S-A2

简要描述:

ARCH A2底座安装DC/DC电源模块SK40-48-24S-A2 SK40-48-12S-A2 SK40-48-15S-A2
尺寸为2.0 x 1.6 x 0.47英寸
   五面铝带非导电底座,黑色阳氧化
   工作温度:-25〜70度
   2:1输入范围
   率86%

在线留言
ARCH A2底座安装DC/DC电源模块SK40-48-24S-A2 SK40-48-12S-A2

ARCH A2底座安装DC/DC电源模块SK40-48-24S-A2 SK40-48-12S-A2 SK40-48-15S-A2

尺寸为2.0 x 1.6 x 0.47英寸

   五面铝带非导电底座,黑色阳氧化

   工作温度:-25〜70度

   2:1输入范围

   率86%



Model No.
(Ordering Part No.)

Input Range

Output Voltage

Output Current

Eff

( V.AC )

( V.DC )

( mA )

( % )

Single Output Models

 SK40-48-1.8S-A2

36 ~ 75 VDC

 1.8

 8000

78

 SK40-48-2.5S-A2

36 ~ 75 VDC

 2.5

 8000

85

 SK40-48-3.3S-A2

36 ~ 75 VDC

 3.3

 8000

84

 SK40-48-5S-A2

36 ~ 75 VDC

 5

 8000

86

 SK40-48-12S-A2

36 ~ 75 VDC

 12

 3333

83

 SK40-48-15S-A2

36 ~ 75 VDC

 15

 2666

83

 SK40-48-24S-A2

36 ~ 75 VDC

 24

 1666

84

















 Specification

1.All specifications valid at nominal input voltage,full load and +25°C after warm-up time unless otherwise stated.
2.Measured with 0.1U 50V // 47U 50V Ceramic Cap. Cross to output













    Input Specification



    Characteristics

    Conditions



    Voltage Range

    2:1 Range:

  36 ~ 75 VDC












    Filter

     type













   Output Specification



    Characteristics

    Conditions



    Output Power

    40 Watt  (max.)



    Voltage Accuracy
    (Full Load and Nominal Vin)

    Single:

  ±2%















    Minimum Load     (at Full Load)





    Line Regulation
    (1 to 10 at Full Load)

    Single:

  ±0.5%

(typ.)















    Load Regulation
    (1 to 10 at Full Load)



    Single:

  ±1%

(typ.)















    Ripple    (20MHz bandwidth)

    1.8S~3.3S:50mV (Vp-p)

(max.)



    5S~24S:1% Vout



    Noise    (20MHz bandwidth)

    1.8S~3.3S:100mV (Vp-p)

(max.)



    5S~24S:1% Vout



    Temperature Coefficient

    ±0.02% / °C  (max.)



    Short Circuit Protection

    Hiccup mode, Auto-recovery













   General Specification



    Characteristics

    Conditions



    Switching Frequency

    400K Hz  (typ.)



    Isolation Voltage  (Input to Output)

    1600 VDC  (min.)



    Operating Temperature

    -25 °C to +70°C  (40°C full load with 18 CFM Air Flow)



    Storage Temperature

    -55°C to +105°C



    Humidity

    95% RH  (max.)



    Cooling

    Free air convection













   Physical Specification



    Characteristics

    Conditions



    Dimension    (Tolerance ±0.5)

    50.8 x 40.6 x 11.9 mm



    2.0 x 1.6 x 0.47 inches



    Weight

    58 g



    Case Material

    Five-side shielded Aluminum with Non-Conductive base, Black Anodize
