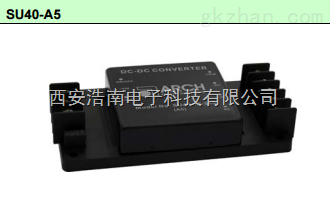

ARCH SU40系列底座安装多路输出DC/DC转换器 SU40-48-5S15D-A5 SU40-

简要描述:

ARCH SU40系列底座安装多路输出DC/DC转换器 SU40-48-5S15D-A5 SU40-48-5S12D-A5

标准尺寸为2.0 x 2.0 x 0.45英寸

五面屏蔽铝带非导电底座,黑色阳极氧化

工作温度:-25〜70度

2:1输入范围

调节输出

低纹波和噪声

同步整流器拓扑

Vout微调和ON / OFF控制功能

在线留言
ARCH SU40系列底座安装多路输出DC/DC转换器 SU40-48-5S15D-A5 SU40-

ARCH SU40系列底座安装多路输出DC/DC转换器 SU40-48-5S15D-A5 SU40-48-5S12D-A5

标准尺寸为2.0 x 2.0 x 0.45英寸

   五面屏蔽铝带非导电底座,黑色阳极氧化

   工作温度:-25〜70度

   2:1输入范围

   调节输出

   低纹波和噪声

   同步整流器拓扑

   Vout微调和ON / OFF控制功能








Model No.
(Ordering Part No.)

Input Range

Output Voltage

Output Current

Eff

( V.AC )

( V.DC )

( mA )

( % )

Single Output Models

 SU40-12-5S-A5

9 ~ 18 VDC

 5

 8000

85

 SU40-12-12S-A5

9 ~ 18 VDC

 12

 3333

85

 SU40-12-15S-A5

9 ~ 18 VDC

 15

 2666

85

 SU40-12-24S-A5

9 ~ 18 VDC

 24

 1666

85

 SU40-24-5S-A5

18 ~ 36 VDC

 5

 8000

87

 SU40-24-12SV

18 ~ 36 VDC

 12

 3333

86

 SU40-24-15S-A5

18 ~ 36 VDC

 15

 2666

86

 SU40-24-24S-A5

18 ~ 36 VDC

 24

 1666

86

 SU40-48-1.8S-A5

36 ~ 75 VDC

 1.8

 8000

76

 SU40-48-2.5S-A5

36 ~ 75 VDC

 2.5

 8000

82

 SU40-48-3.3S-A5

36 ~ 75 VDC

 3.3

 8000

84

 SU40-48-5S-A5

36 ~ 75 VDC

 5

 8000

88

 SU40-48-12S-A5

36 ~ 75 VDC

 12

 3333

87

 SU40-48-15S-A5

36 ~ 75 VDC

 15

 2666

87

 SU40-48-24S-A5

36 ~ 75 VDC

 24

 1666

87



Dual Output Models

 SU40-12-5D-A5

9 ~ 18 VDC

 ±5

 ±3500

82

 SU40-12-12D-A5

9 ~ 18 VDC

 ±12

 ±1666

85

 SU40-12-15D-A5

9 ~ 18 VDC

 ±15

 ±1320

85

 SU40-24-5D-A5

18 ~ 36 VDC

 ±5

 ±3500

83

 SU40-24-12D-A5

18 ~ 36 VDC

 ±12

 ±1666

86

 SU40-24-15D-A5

18 ~ 36 VDC

 ±15

 ±1320

86

 SU40-48-5D-A5

36 ~ 75 VDC

 ±5

 ±3500

84

 SU40-48-12D-A5

36 ~ 75 VDC

 ±12

 ±1666

87

 SU40-48-15D-A5

36 ~ 75 VDC

 ±15

 ±1320

87



Triple Output Models

 SU40-12-5S12D-A5

9 ~ 18 VDC

 5 / ±12

 5000 / ±600

85

 SU40-12-5S15D-A5

9 ~ 18 VDC

 5 / ±15

 5000 / ±500

85

 SU40-24-5S12D-A5

18 ~ 36 VDC

 5 / ±12

 5000 / ±600

86

 SU40-24-5S15D-A5

18 ~ 36 VDC

 5 / ±15

 5000 / ±500

86

 SU40-48-5S12D-A5

36 ~ 75 VDC

 5 / ±12

 5000 / ±600

87

 SU40-48-5S15D-A5

36 ~ 75 VDC

 5 / ±15

 5000 / ±500

87



窗体底端

Specification



1.All specifications valid at nominal input voltage,full load and +25°C after warm-up time unless otherwise stated.
2.Measured with 0.1U 50V // 47U 50V Ceramic Cap. Cross to output

















    Input Specification





    Characteristics

    Conditions





    Voltage Range

    2:1 Range:

  9 ~ 18 VDC
  18 ~ 36 VDC
  36 ~ 75 VDC














    Filter

     type

















   Output Specification





    Characteristics

    Conditions





    Output Power

    40 Watt  (max.)





    Voltage Accuracy
    (Full Load and Nominal Vin)

    Single:

  ±2%





    Dual:

  ±2%





    Triple:

  ±2% / ±5%





    Minimum Load     (at Full Load)

    0% to 10%





    Line Regulation
    (10% to 100% at Full Load)

    Single:

  ±0.5%

(typ.)





    Dual:

  ±0.5%





    Triple:

  ±1% / ±5%





    Load Regulation
    (10% to 100% at Full Load)



    Single:

  ±1%

(typ.)





    Dual:

  ±2%





    Triple:

  ±3% / ±5%





    Ripple    (20MHz bandwidth)

    1.8S~5S:50mV (Vp-p)

(max.)





    others:1% Vout





    Noise    (20MHz bandwidth)

    1.8S~5S:100mV (Vp-p)

(max.)





    others:1% Vout





    Temperature Coefficient

    ±0.02% / °C  (max.)





    Short Circuit Protection

    Hiccup mode, Auto-recovery

















   General Specification





    Characteristics

    Conditions





    Switching Frequency

    5V Output:250KHz / 12V Input:200KHz / others:400KHz  (typ.)





    Isolation Voltage  (Input to Output)

    1600 VDC  (min.)





    Operating Temperature

    -25 °C to +70°C  (with derating)





    Storage Temperature

    -55°C to +105°C





    Humidity

    95% RH  (max.)





    Cooling

    Free air convection

















   Physical Specification





    Characteristics

    Conditions





    Dimension    (Tolerance ±0.5)

    50.8 x 50.8 x 11.4 mm





    2.0 x 2.0 x 0.45 inches





    Weight

    70 g





    Case Material

    Five-side shielded Aluminum with Non-Conductive base, Black Anodize
